Taylor RC (formerly RCMax) Complete Ready to Install High Performance Engine and Pipe package for all the PRIMAL RC Monster Trucks!
This engine will provide you with over 3 times the power of stock engine but not quite the gear shattering torque of the 80 SUPREME for those concerned about drivetrain reliability.
This one is custom anodized green and purple to match the Grave Digger colors

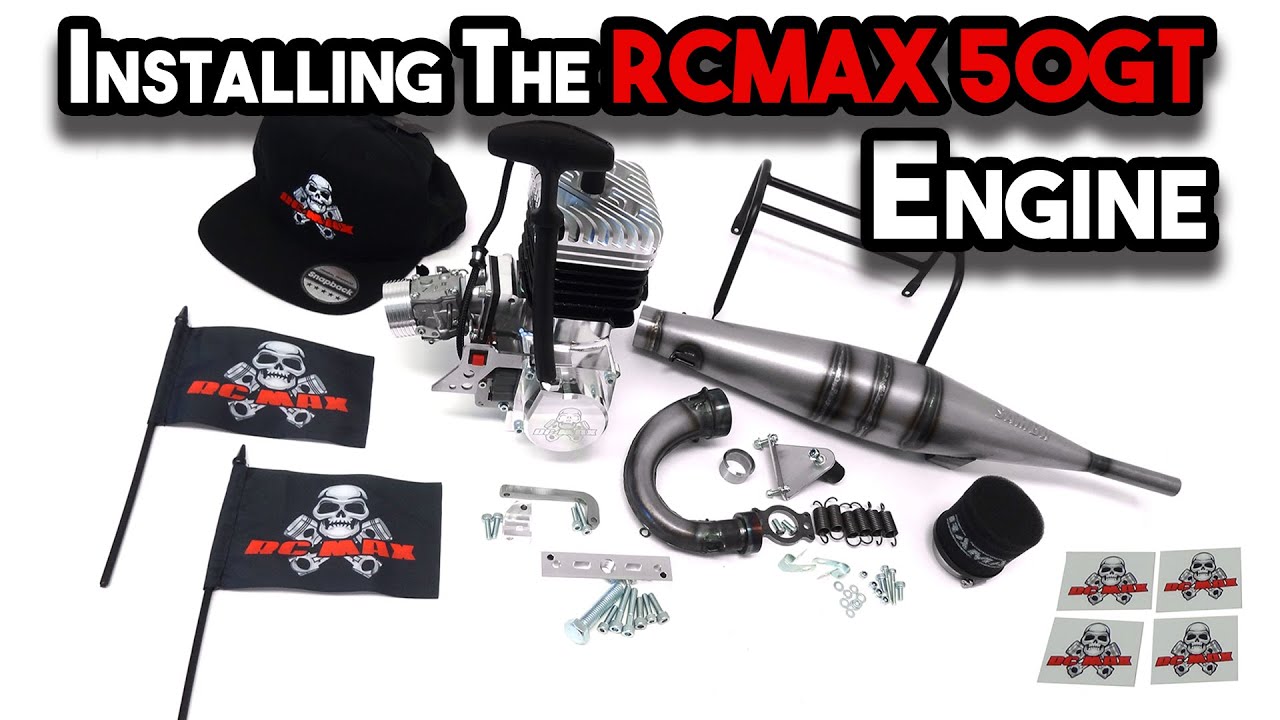

The package includes the following:
- 50cc Billet Reed engine (40mm Bore x 39.6mm Stroke) (Custom Green Splash Anodized)
- Taylor RC GT CYLINDER (Insane torque output with staged triple exhaust port)
- Custom Purple Billet cylinder head (more torque over the cast head)
- 78mm 3-Shoe GO-PED CLUTCH SYSTEM
- Fits straight onto the stock Ram Clutch bell housing and transmission for easy swap.
- NEW 2020 Oppama Japanese Ignition System
- Taylor RC BILLET HD PULL STARTER
- Taylor RC Reed System with 8 custom high tension carbon-fiber petals.
- Walbro WJ71 Carb
- RAM AIR Dual layer foam filter
- Taylor RC BIG BORE RAMINATOR EXHAUST and fitting kit.
- Custom Throttle cable linkage bracket
- Custom Billet RH and LH engine brackets to replace stock engine brackets.
- Custom Tubular Steel exhaust protection rollover bar with twin Taylor RC flags for show!
- The famous Taylor RC Official Hat
THE 50 FITS ALMOST THE SAME AS OUR 80cc MONSTER, JUST WITHOUT THE NEED TO CHANGE TRANNY, SEE INSTALL VIDEO BELOW.
Fitment into the primal Raminator is fairly straightforward. Once you have removed the stock engine and pipe, also remove the center top cross over link bar between the two side chassis plates.
While the stock engine is out, we highly recommend cutting out a section of the side chassis plate next to the pull starter so that you can fit the engine (or even the stock engine) Without having to remove the pull starter or remove the side chassis plate itself. (see photo above with section cut out around the pull starter).
Then the engine itself can drop in and bolt up with the supplied engine brackets (fitment shown in pics).
As mentioned above, if you cut your chassis it will drop in, if not, remove the pull start side chassis plate and then there is room to fit. Fit all the engine mounting bolts supplied. Next you can hook up the throttle linkage cable onto the big bore WJ71 carb. Simply remove the linkage cable hole from the stock carb by popping the bracket off and removing the E clip. Then put this piece onto the Hole cut out in the WJ71 Carb arm as shown in photos.
Finally you can fit the cable to the supplied holder bracket and adjust to suit. (again see photos) The last step is to fit the exhaust mounting bracket to the car ready to support the pipe. (the main belly section of the pipe fits to the car AFTER the body has been fitted – slide in through the gap at back of the roll over bar and into place). Then its as simple as two retaining springs and the one nut on the rubber mount!
