The Mega Monster Truck
We’re Happy to offer you our latest creation from Primal RC the New 1/5 Scale Ready to Run 4X4 Mega Monster Truck! It’s a real Gas powered 4-wheel drive solid-axle Monster Truck based on our Raminator Monster Truck. This New MEGA Monster Truck Features a new Classic Style Pickup Truck Body with a redesigned roll cage and New MEGA Mud Tires for a New Aggressive Look. These New Tires allow the overall track width of this truck to be 4.5 inches smaller than the Raminator’s Monster Truck Tires so it’s a little easier to fit places and drive around. Mechanically, everything else is the same between both new V3 trucks on the Primal Monster Truck platform.
$3,399 $2,999 + Shipping
Order Now
*Shipping not included.

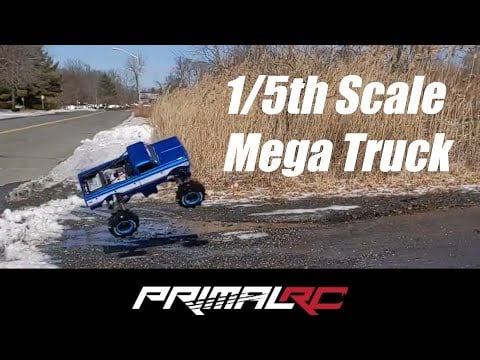

See the Mega Monster Truck in Action
A New Classic
The Mega Monster Truck is built on the version 3 Primal RC Monster Truck platform
- Solid Axle Ready-To-Run Monster Truck
- 2-Stroke Reed-Valve 49cc Gas Mini Motorcycle Engine
- 78mm Centrifugal Clutch
- Transmitter-Activated Reverse Function
- Four-Link Coil-Over-Shock Suspension Setup
- Weighs A Backbreaking 85 Pounds
- 32 inches wide, 40 inches long and 24 inches tall
- Classic truck body style
For full features and specifications, view the product page by touching here
Features
- Solid Axle
- Suspension
- Drive Shafts
- Transmission
- 49cc Engine
- Body & Roll Cage
- Frame
- Steering
- Wheels
- Brakes
- Electronics
Solid Axle
CNC aluminum axle tubes with steel axle shafts. Heavy duty CNC aluminum-cased oil-filled 4 bevel gear differentials. Steel ring and pinon gears. Modular axle tube designed for easy maintenance. Ready for rear-wheel steering conversion kit.
Suspension
Adjustable four-link coil-over-shock long-travel suspension. 12-Inch aluminum-bodied oil-filled heavy duty shocks. Front and rear sway bars. Solid aluminum four-link suspension shafts with steel heim joint ends.
Drive Shafts
The drivetrain of the monster truck has been designed to handle a vehicle of its size and weight. To ensure durability and performance, the drivetrain includes heavy duty 22mm-thick steel front and rear telescopic drive shafts.
Transmission
Double chain-driven all-steel gear single-speed transmission. Multiple gear ratio options for high speed and torque adjustments. Transmitter-operated reverse. Designed for easy maintenance.
49cc Reed Valve Engine
49cc 2-stroke gas air-cooled pull start reed valve mini motorcycle engine. Rated for 6+ horsepower. Designed for high torque at lower RPM. 80mm centrifugal clutch setup. Custom-designed stainless steel tuned exhaust pipe.
Body and Roll Cage
Monster truck body. Two-Piece polycarbonate body mounted on a custom heavy duty plastic roll cage. Entire body and cage assembly easily removable for maintenance. Detailed interior driver figure.
Frame
Six-piece modular CNC aluminum frame. Frame designed to mount engine for a low center-of-gravity.
Steering
Dual 100kg servos with heavy duty, adjustable aluminum servo saver. Heavy duty steel heim joint steering-link ends.
Tires and Rims
11 x 4.5 inch mega truck mud tires with foam insert. Inner and outer heavy duty nylon beadlocks. Mounted on 24mm hex, 4 x 6 inch nylon rims with strengthening ribs.
Brakes
Front and rear axle-mounted manual disc brakes with steel rotors. Equipped with strong 70kg brake servos for great stopping power.
Electronics
FlySky 2.4 GHz 6-channel transmitter. Ready for lights, rear steering and other accessories. Remote engine kill switch. Upgraded aluminum enclosed battery receiver and kill switch box with volt meter.
Five all-metal gear servos installed:
- 2x 100kg steering servos
- 1x 70kg brake servo
- 1x 20kg throttle servo
- 1x 20kg Reverse Servo
Solid Axle
CNC aluminum axle tubes with steel axle shafts. Heavy duty CNC aluminum-cased oil-filled 4 bevel gear differentials. Steel ring and pinon gears. Modular axle tube designed for easy maintenance. Ready for rear-wheel steering conversion kit.
Suspension
Adjustable four-link coil-over-shock long-travel suspension. 12-Inch aluminum-bodied oil-filled heavy duty shocks. Front and rear sway bars. Solid aluminum four-link suspension shafts with steel heim joint ends.
Drive Shafts
The drivetrain of the monster truck has been designed to handle a vehicle of its size and weight. To ensure durability and performance, the drivetrain includes heavy duty 22mm-thick steel front and rear telescopic drive shafts.
Transmission
Double chain-driven all-steel gear single-speed transmission. Multiple gear ratio options for high speed and torque adjustments. Transmitter-operated reverse. Designed for easy maintenance.
49cc Reed Valve Engine
49cc 2-stroke gas air-cooled pull start reed valve mini motorcycle engine. Rated for 6+ horsepower. Designed for high torque at lower RPM. 80mm centrifugal clutch setup. Custom-designed stainless steel tuned exhaust pipe.
Body and Roll Cage
Monster truck body. Two-Piece polycarbonate body mounted on a custom heavy duty plastic roll cage. Entire body and cage assembly easily removable for maintenance. Detailed interior driver figure.
Frame
Six-piece modular CNC aluminum frame. Frame designed to mount engine for a low center-of-gravity.
Steering
Dual 100kg servos with heavy duty, adjustable aluminum servo saver. Heavy duty steel heim joint steering-link ends.
Tires and Rims
11 x 4.5 inch mega truck mud tires with foam insert. Inner and outer heavy duty nylon beadlocks. Mounted on 24mm hex, 4 x 6 inch nylon rims with strengthening ribs.
Brakes
Front and rear axle-mounted manual disc brakes with steel rotors. Equipped with strong 70kg brake servos for great stopping power.
Electronics
FlySky 2.4 GHz 6-channel transmitter. Ready for lights, rear steering and other accessories. Remote engine kill switch. Upgraded aluminum enclosed battery receiver and kill switch box with volt meter.
Five all-metal gear servos installed:
2x 100kg steering servos, 1x 700kg brake servo, 1x 20kg throttle servo, 1x 20kg Reverse Servo
Version 3 Edition
With the Mega Monster Truck, we’ve introduced upgrades to the Monster Truck platform based on customer feedback. Upgraded 100KG steering servos, upgraded large capacity MEGA shocks, upgraded aluminum electronics box with voltage meter, and an upgraded and redesigned reverse gear slider are just some of the upgrades we’ve added to this model. Tap the button below to take a look at the full listing.
Order NowParts
Specifications
Features
| Feature | Description |
|---|---|
| Skill Level | Advanced |
| Speed | 20 to 30 MPH |
| Engine | 49cc 2-Stroke Reed-valve Engine |
| Transmission | Single Speed with Remote Reverse Feature |
| Differential Type | Front and Rear Bevel Gear Differential |
| Brake | Front & Rear Single Disc Mounted Driveshaft Mounted Manual Disc Brakes |
| Drive System | All Steel Gears with double chain transfer case drive |
| Steering | Steering Dual Servo with HD Aluminum Servo Saver |
| Radio | 2.4 GHz 6-Channel FlySky Digital Radio |
Specifications
| Spec | Description |
|---|---|
| Length | 40 inches |
| Width | 32 inches |
| Height | 24 inches |
| Weight | 85 pounds |
| Wheelbase | 24 inches |
| Tires | 11 x 4.5 inches |
| Rims | 5.5 in diameter x 6 inches wide |
| Minimum Ground Clearance | 4 inches, Adjustable |
| Minimum Chassis Clearance | 4.5 inches, Adjustable |
| Minimum Axle Ground Clearance | 4 inches |
| Tracks | 31.5 inches |
| Servos |
|
| Battery Type | 7.2v 4800 mAh NiMH Battery |
